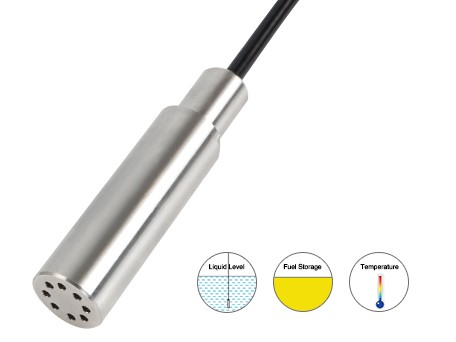

Fuel Level Sensor With Submersible Type For Fuel Tank In Model
Specifications
| Parameter | HPT604 (LT Type) |
| Pressure Range | 0-0.1Bar…..5 Bar / 0-1M……..50m H2O Optional (See P1 page description) |
| Overload | 200% F.S. |
| Burst Pressure | 400% F.S. |
| Accuracy: | ≤ ±0.5%F.S (≥2m level range and between0-50 degree C); ≤ ±1.0%F.S (0.5m≤Level Range<2m level range and between0-50 degree C) |
| (Linearity Hysteresis | Including non-lin., rep. and hys. |
| Repeatability) | Optional |
| Long Stability | ≤ ±0.2 % of span/year |
| Temperature Range | -30 to +70 degree C |
| Temperature Accuracy | ±1%F.S. (± 1 ℃) |
| Working Temp | -30℃~80℃ |
| Storage Temp | -40℃~85℃ |
| Temperature Compensation | 0-50℃ (Range＜100kPa); -10℃~60℃(Range≥100kP) |
| Medium compatible | Compatible with SUS304 Stainless Steel |
| Electronic Wire | 2 Wires , 3 wires , 4 wires |
| Output | 4~20mA Double 4-20mA Level&Temp RS485 Modbus RTU |
| Power Supply | 10~30 V DC / 12~30 Vdc / 7~30 Vdc |
| Overload Voltage | 32Vdc / 32Vdc / 36Vdc |
| Polarity protection | Available for signal wires or Power wires each other reverse, unavailable signal and power wire reverse! |
| Insulate resistance | ＞100M Ω@100V |
| Zero Temp. Drift | 0.75%FS/℃（≤100kPa）； 0.5%FS/℃（>100kPa） |
| FS Temp. Drift | 0.75%FS/℃（≤100kPa）； 0.5%FS/℃（>100kPa） |
| Electronic connection | Fixed cable and water proof IP68 |
| Response time | ≤200ms |
| Data overtime interval | ≥50ms |
| Material of Housing | 304 Stainless Steel |
| Material of Cells | 316L Stainless Steel |
| Blind Zone of Probe | 5 mm |
| Pressure Type | Gauge pressure |
| Certificate approving | ATEX intrinsic safety or ExdIICT6, TUV RoHS and CE Certificate approving |
| EMC Standard | EN 61326-1:2013; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1 |
| Lighting Protection(optional functions) | Air conduction more than 8000V; external sensor more than 4000 Voltage protection. |
| Cable optional | Cable materials are optional according request, we offer 3 type special cable as follow: PE Cable（Water Proof）; PU Cable（Diesel Proof）; FEP Cable（Anti-Corrosive for gasoline） |
| Weight | Net weight is about 0.35KG, Full Packing weight is about 1.0 KG (Excluding Cable) |
More Information
Fuel Level Sensor With Submersible Type For Fuel Tank In Model HPT604-LT is designed based on the "submersible" shape, it is mainly used to measure the level, volume, fuel storage and fuel temperature of fuel tanks (underground storage tanks). With wireless terminals, remote monitoring solutions can be realized.
In Stock: 0.0
| Stock: | 0.0 Can Dispatch Immediately |
| Factory Lead Time: | 15 Days |
| Price: |
₹ 21,400.00 ₹ 21,400.00₹ 21,400.00 |
